Rapid Enclosure Large
Usually only offered to our distributors and car builders, we are offering a limited number of these pre-built enclosures direct to customers.

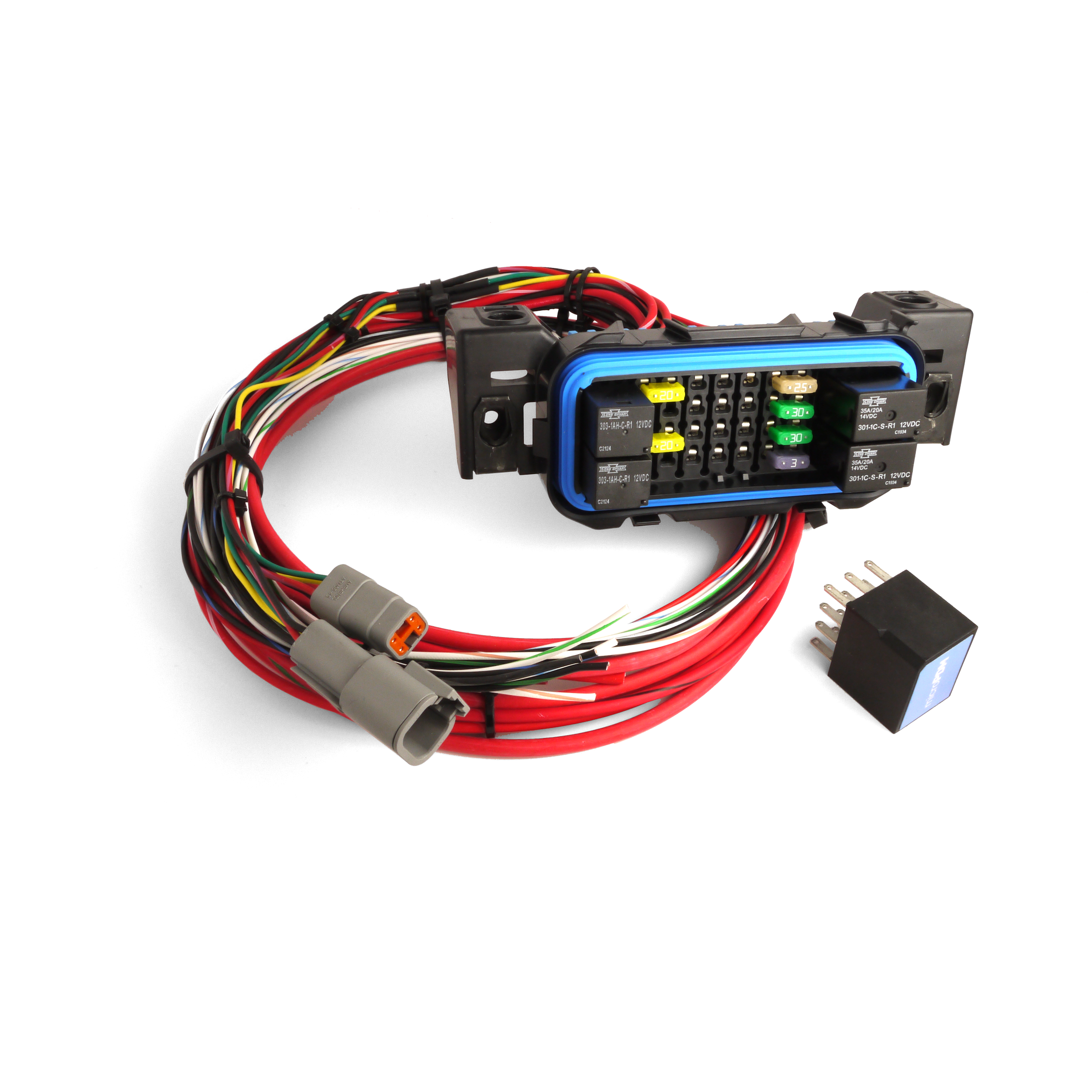

These accelerate the wiring of a MicroPDM with a pre-populated ISO-280 GEP 48-way sealed enclosure, fully wired for a high-side MicroPDM. The enclosure houses four SPST relays (two 20A and two 30A), required fuses, and is pre-wired to accept our plug-and-play keypad cables. These enclosures are stackable, allowing you to daisy chain two together for a total of 14 outputs, 8 of which controlling relays for high current loads.
Note: The Rapid Enclosure Large does not include a MicroPDM Module. MicroPDM modules must be purchased separately.
Usually only offered to our distributors and car builders, we are offering a limited number of these pre-built enclosures direct to customers.
These accelerate the wiring of a MicroPDM with a pre-populated ISO-280 GEP 48-way sealed enclosure, fully wired for a high-side MicroPDM. The enclosure houses four SPST relays (two 20A and two 30A), required fuses, and is pre-wired to accept our plug-and-play keypad cables. These enclosures are stackable, allowing you to daisy chain two together for a total of 14 outputs, 8 of which controlling relays for high current loads.
Note: The Rapid Enclosure Large does not include a MicroPDM Module. MicroPDM modules must be purchased separately.
Usually only offered to our distributors and car builders, we are offering a limited number of these pre-built enclosures direct to customers.
These accelerate the wiring of a MicroPDM with a pre-populated ISO-280 GEP 48-way sealed enclosure, fully wired for a high-side MicroPDM. The enclosure houses four SPST relays (two 20A and two 30A), required fuses, and is pre-wired to accept our plug-and-play keypad cables. These enclosures are stackable, allowing you to daisy chain two together for a total of 14 outputs, 8 of which controlling relays for high current loads.
Note: The Rapid Enclosure Large does not include a MicroPDM Module. MicroPDM modules must be purchased separately.
The Rapid Enclosure Large is custom assembled for MicroPDM. All wiring is high-quality TXL, with long flying leads for maximum flexibility during installation.
Compact enclosure for environmental protection and easy mounting.
Allows flush mounting or side mounting by relocating the included speed nuts.
Multiple enclosures can be snapped together forming a single unit.
Long flying leads for seven low-current (2.5A) outputs, two 20A outputs, two 30A outputs, battery, ground, and ignition connections.
Included fuses and relays for the two 20A outputs and two 30A outputs.
Plug and play connections to daisy chain an additional Rapid Enclosure or Rapid Enclosure Large for additional capacity.
Expansion plug on one side of the bus for easy termination or to tie into an existing CAN bus. This follows the AEMNet standard, so AEM CAN termination plugs and hubs make for easy expansion.
Easily add one of our keypad cables (with integrated termination resistor) to plug and play a keypad.
Works with high-side MicroPDMs only.
For more information, see the Rapid Enclosure Large Installation Guide.
Note: MicroPDM, keypad, and keypad cable not included.
