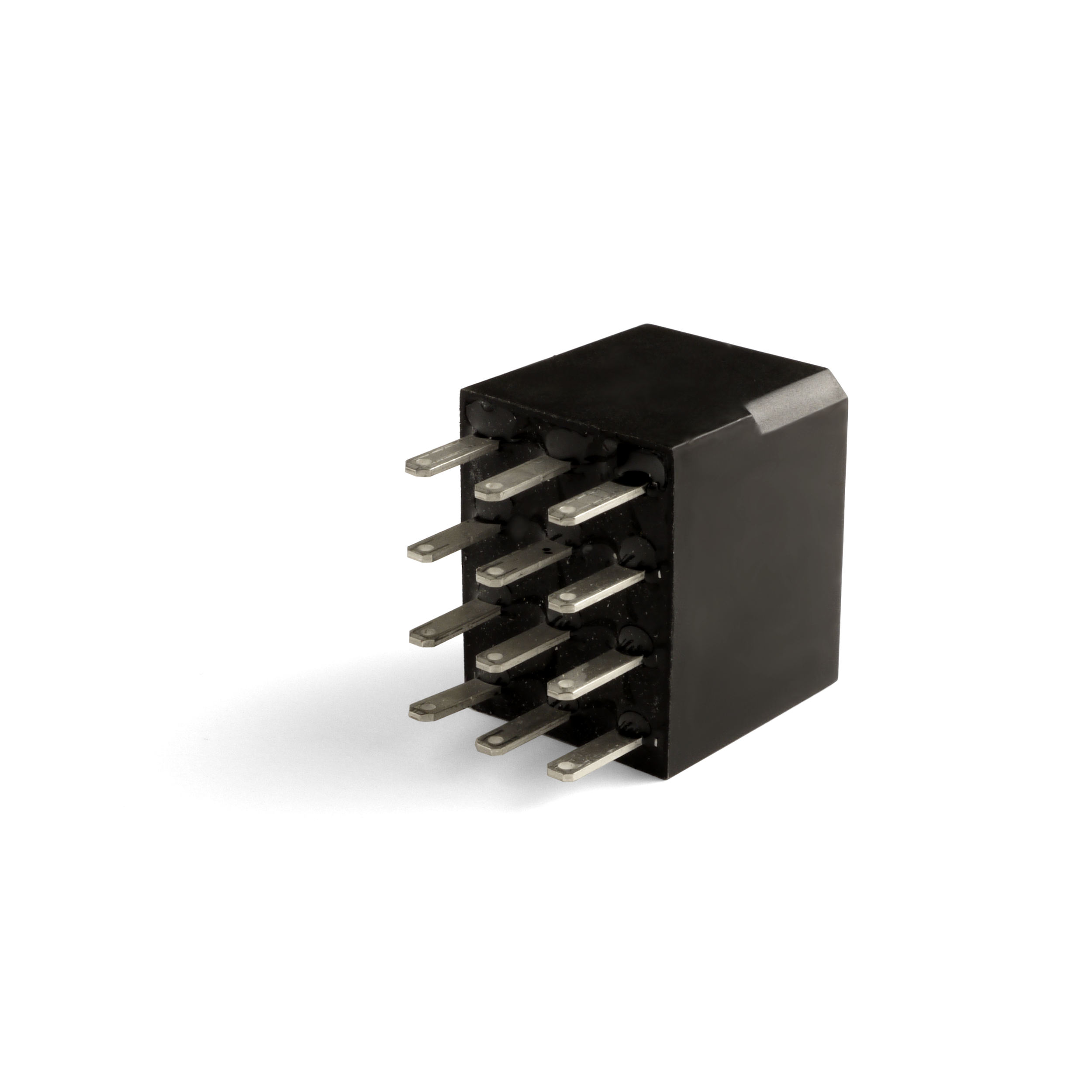

MicroPDM Primary Low-Side Power Distribution Module
The simple, lightweight, configurable, expandable Power Distribution Module (PDM) designed for motorsport. This primary module serves as the central brain of a MicroPDM system. Connect this module to your car’s circuits to enable keypad and CAN bus control of your car’s functions.
This module has 7 low-side outputs that will sink (ground) loads up to 0.5 amp.
The simple, lightweight, configurable, expandable Power Distribution Module (PDM) designed for motorsport. This primary module serves as the central brain of a MicroPDM system. Connect this module to your car’s circuits to enable keypad and CAN bus control of your car’s functions.
This module has 7 low-side outputs that will sink (ground) loads up to 0.5 amp.
The simple, lightweight, configurable, expandable Power Distribution Module (PDM) designed for motorsport. This primary module serves as the central brain of a MicroPDM system. Connect this module to your car’s circuits to enable keypad and CAN bus control of your car’s functions.
This module has 7 low-side outputs that will sink (ground) loads up to 0.5 amp.
More about low-side modules

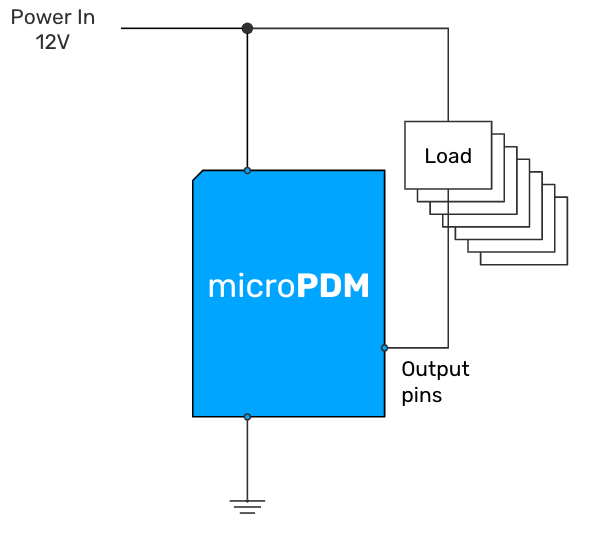

Low-side MicroPDMs sink (ground) up to 0.5A for each output. Low-side outputs must be connected to the ground side of the load. Low-side outputs are designed to control ground-switched devices like relays, other PDMs, and OEM ground-switched systems.
If you want to provide current instead of grounding, check out our high-side modules.
Detailed Specifications
| Mounting | 2 micro 280 relay footprint |
| Housing | Plastic |
| Weight | 40 gr |
| Connector | 2.8 mm tab |
| Temperature range | -40 °C to +85 °C |
| Environmental protection | IP 67 in combination with fuse box |
| Total outputs | 7 digital outputs |
| CAN interface | CAN interface 2.0 A/B |
| Standby current | 23 mA |
| Over-current protection | 1 A + load |
| Overvoltage protection | ≥ 33 V |
| Undervoltage cut-off | ≤ 6 V |
| Reverse polarity protection | Yes |
| Output load rating (low-side) | 0.5 A permanent per output. Current monitoring is not available for low-side MicroPDMs |
